Part Modeling Practice

Try to model the parts shown below. In the cases where the diemnsions are not given try to estimate the dimensions. For those parts with engineering drawings, use the dimensions given. In all cases try to model with design intent.

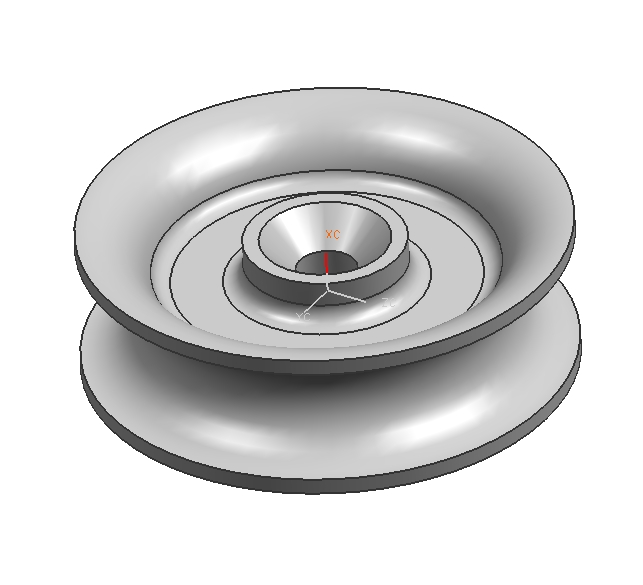

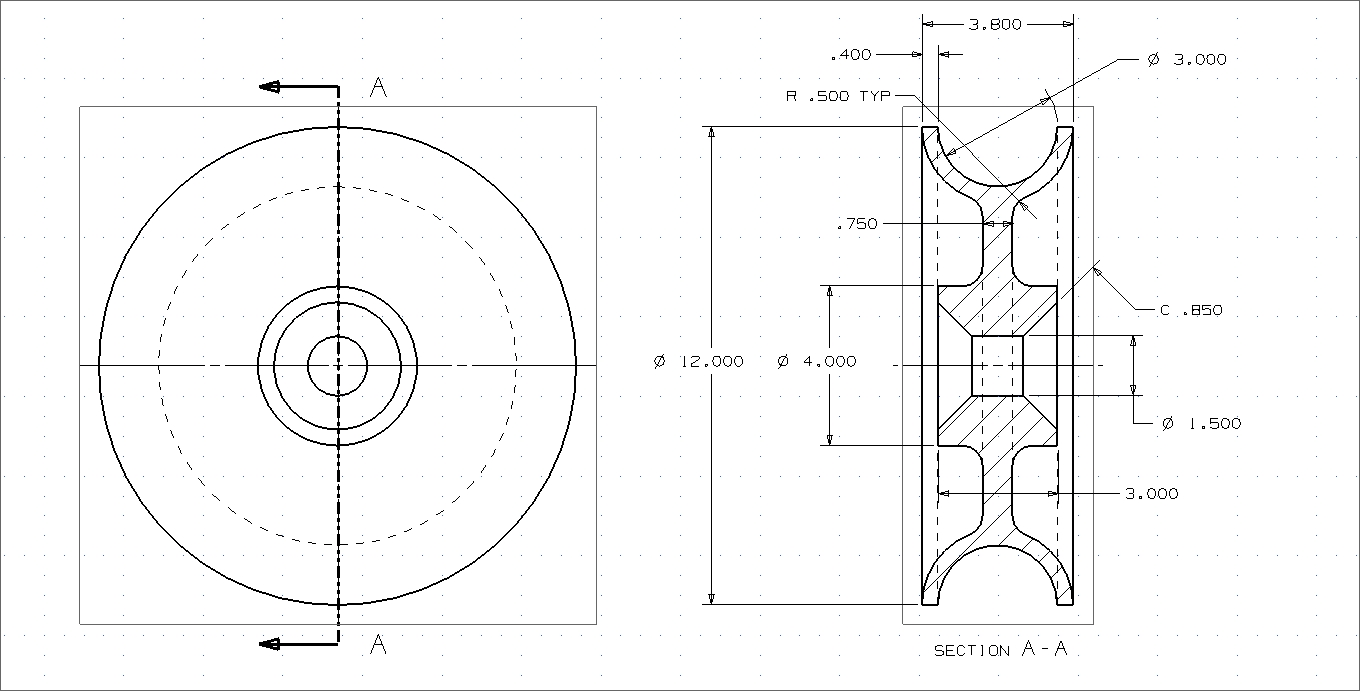

  1. Wheel Hub

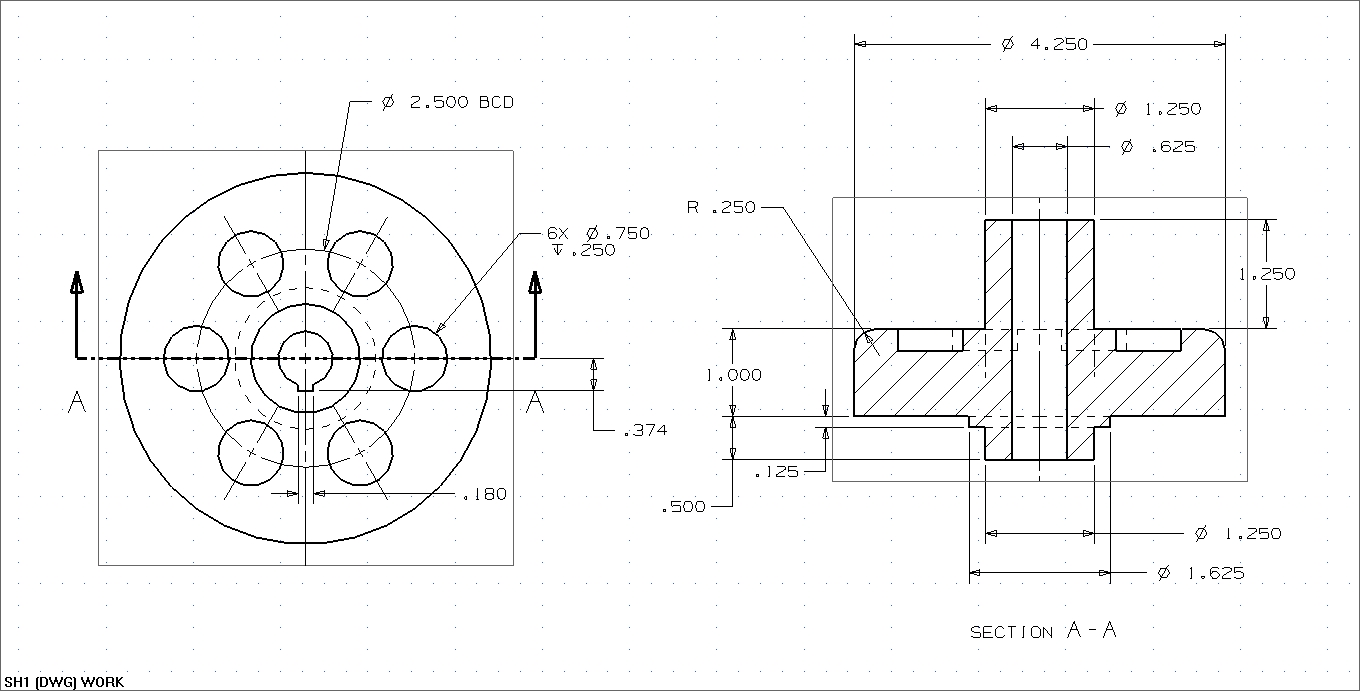

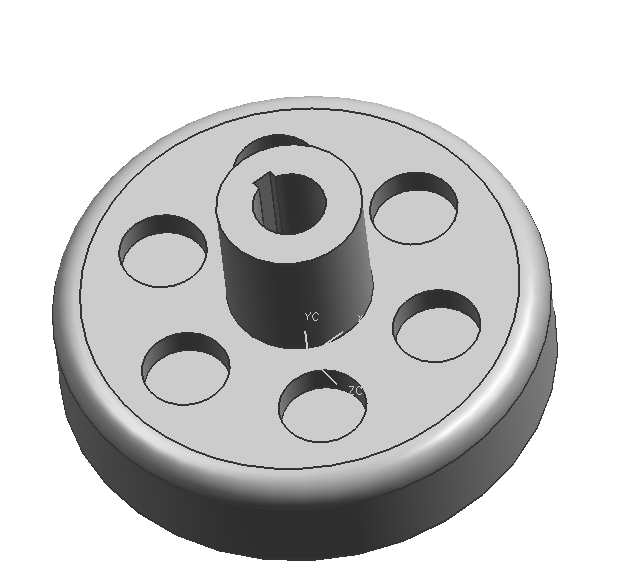

  2. Clutch

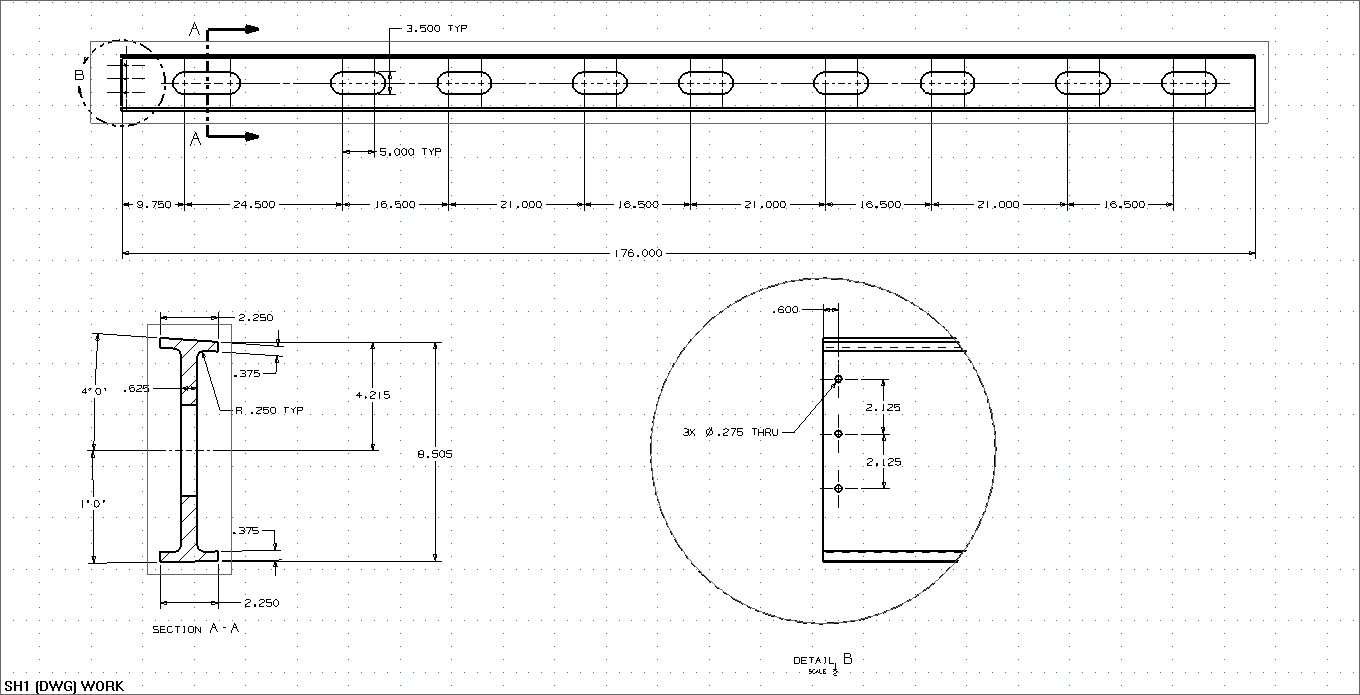

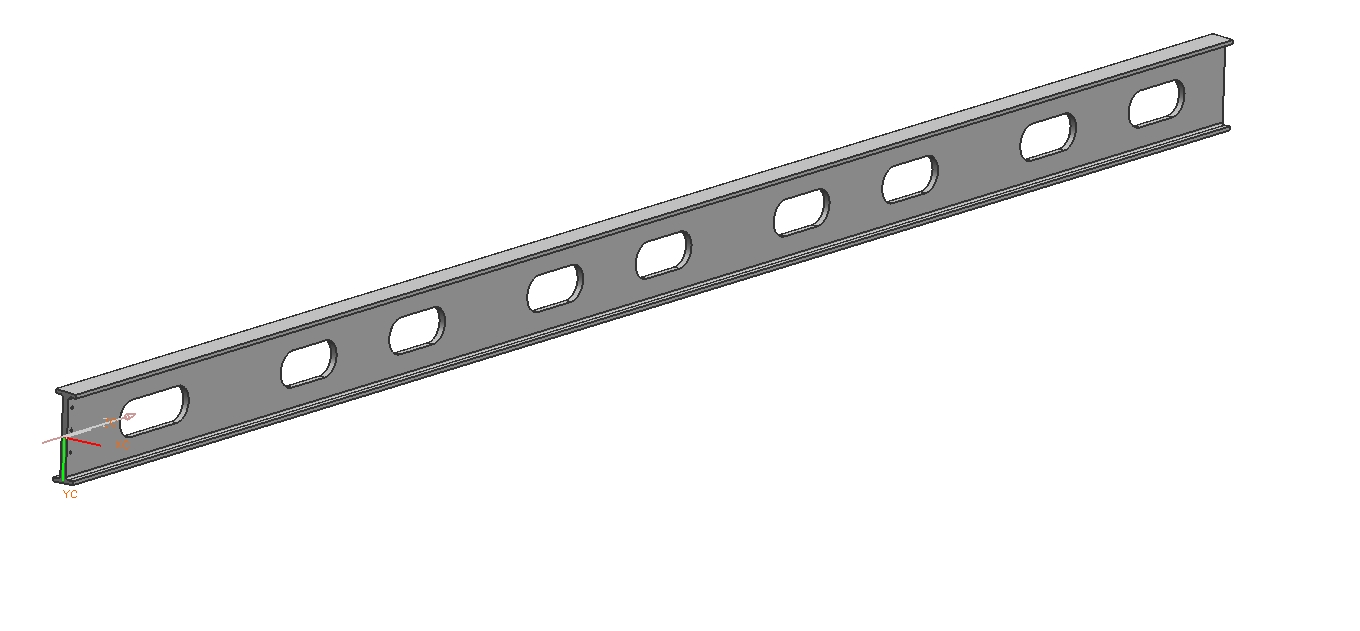

  3. Wing Spar

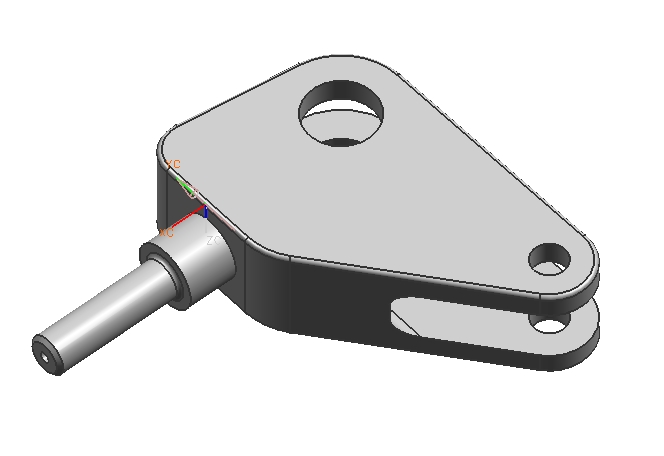

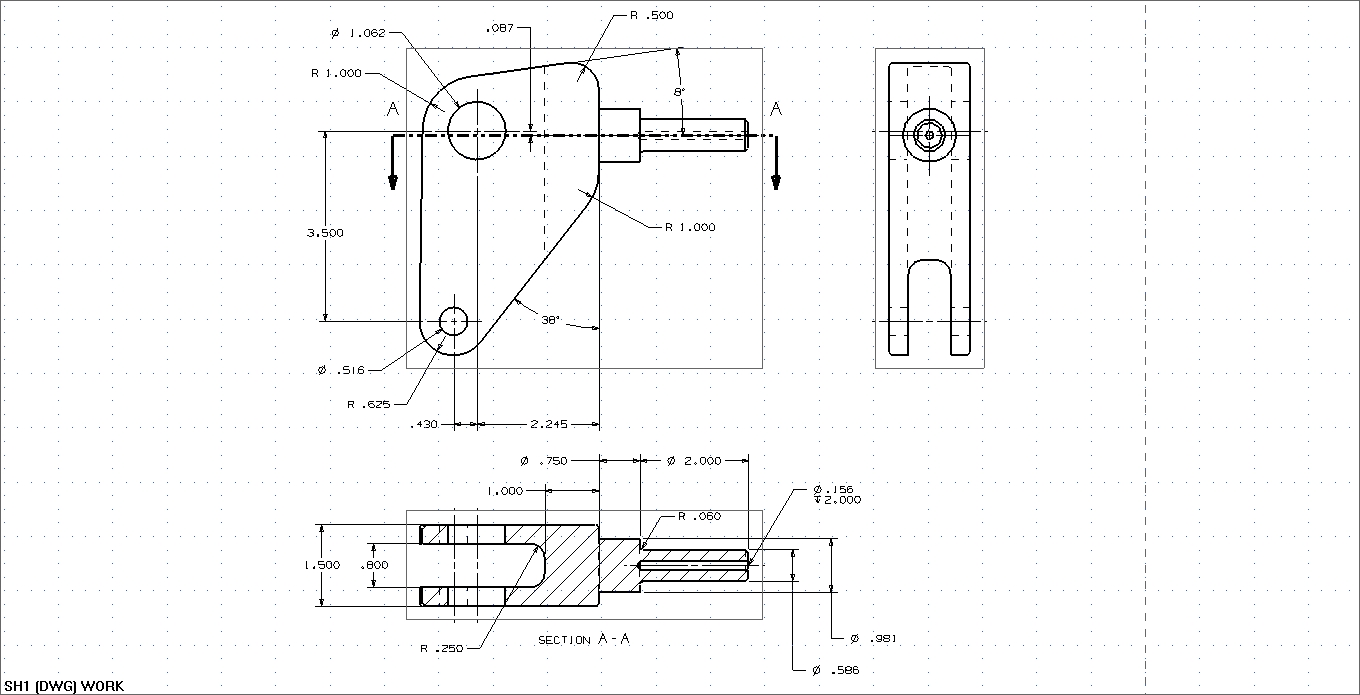

  4. Steering Knuckle

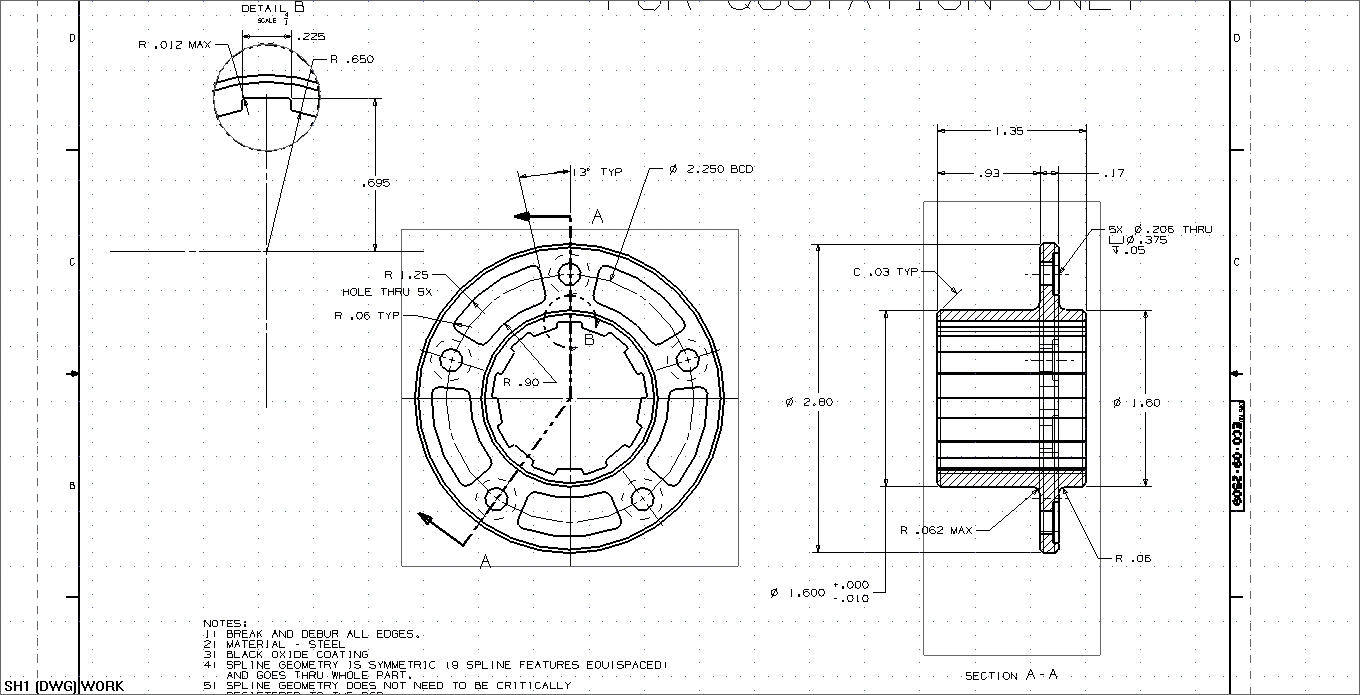

  5. Spline Adapter

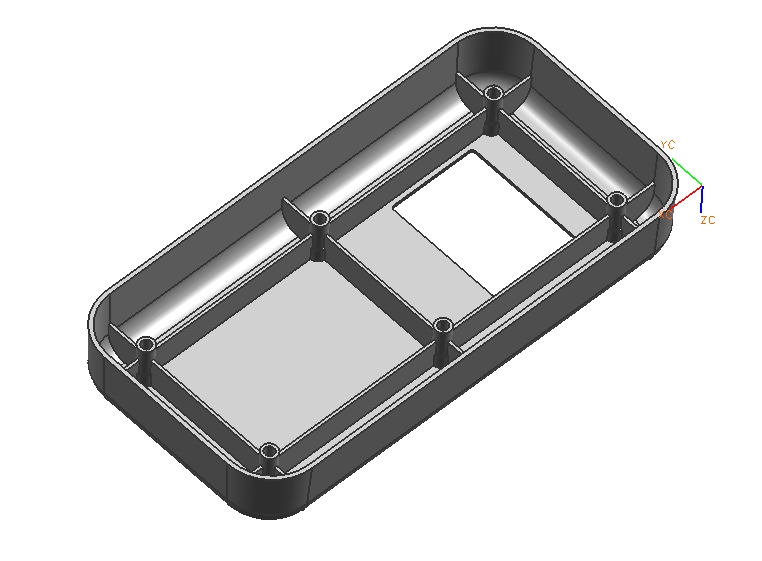

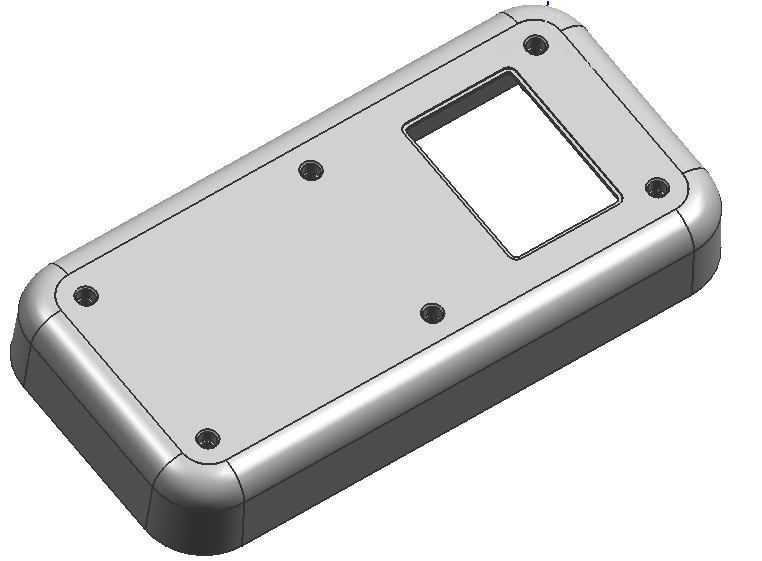

  6. Instrument Cover


  7. Bicycle Quick Release Skewer
